German Medium Pressure Quick Connect Coupling

GMP Series

GMP Series - German Medium Pressure Quick Connect Coupling

Double Shut-Off Quick Couplings (Non-Valve Optional For Nipple)
Interchanges with
Walther MD series

Applications

GMP Series couplings are sued in Automotive industry, Machine and systems engineering, Chemical and pharmaceutical industry, Steel industry, Offshore technology, Transportation technology, Medical technology, Aerospace and aviation and Defence technology. (refer to and depend on the performance of this series)

Features

■ Heavy duty design as standard. Machined from high grade carbon steel for durability.
■ Hardening treatment for specific stressed area like nipple.
■ Triangle poppet valve. Nipple also deisnged without vavle.
■ Modular end construction to support broad choice of end configurations such as optional 24° cone (Bulkhead) - DIN 2353, Male BSPP - DIN 3852-B with DIN 60° cone.
■ Media: water, compressed air, diverse fluids, fuel, lubricating greases / hydraulic oils
■ unlocking safety device, ring grips for larger nominal bores.

Walther MD series Interchange

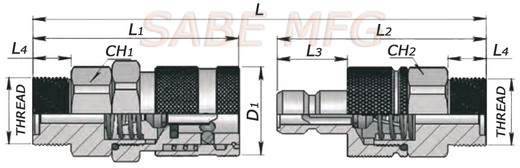

Part No. Body Size DN Thread L L1 L2 L3 L4 D1 CH1.2
GMP06 06 1/4 92.3 58 56 21.7 11 25 19
GMP07 07 3/8 109 68 66 25 12 30 24
GMP10 10 1/2 134.5 82 80 27.5 15 35 32
GMP12 12 3/4 136.5 84 84 31.5 17 40 32
GMP19 19 1 168.5 102 102 35.5 20 54 46
Standard Thread: BSPP & Metric Male Thread, other thread available for custom order
Standard Material: Steel

Specification

Body Size (DN) 06 07 10 12 19
Rated Pressure (Mpa) 25 25 25 25 25
Rated Flow (L/Min) 15 25 35 50 120
Temperature Range -20°C to +80°C
Seal Standard NBR(Nitrile)

FPM(Viton®) seal is available, Please indicate if you need
