ISO 16028 Flat-Face Hydraulic Quick Disconnects

FF Series - ISO 16028 Flat-Face Hydraulic Quick Disconnects

Double Shut-Off Quick Couplings
Industry Standard
FF Series couplings comply with ISO 16028 Standard
Interchange with
Parker FE/FF, Aeroquip/Eaton FD 89, Hansen QA 2900/FF, Foster FF(FFI-2FFI), Faster FF, Cejn X62, Snap-Tite 74, Dixon HT, Safeway FF49, Tomco FE Series

Features

■ Sleeve locking mechanism is engaged by rotating sleeve after connection.It prevents accidental disconnection when,the coupling is dragged along the ground.
■ Sleeve mechanism is designed to help prevent dirt from entering the intermal mechanism and thus causing faulty operation when connecting or disconnecting. The sleeve covers the retaining ring and also in corporates a dust seal in the spring.
■ Steel construction, Zinc plated with yellow chromate finish. Hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.
■ This Anti-Blowout Nitrile/PTFE bonded seal is designed to prevent blow-out or damage during severe service conditions.
■ Durable ball-locking mechanism assures reliable connections, every time. A large number of locking balls distributes the work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life. CAUTION: These products are not to be used as swivels. Rotation under pressure will result in excessive and premature wear.
■ FF series couplings employ flush valving when connecting or that only small amounts of fluid can be lost during disconnection or air inclusion during reconnection.

Applications

FF Series couplings are widely used in the public utility market where hydraulic oil spillage can constitute a serious safety hazard,particularly in overhead bucket hoists that are used for maintenance of high-voltage power transmission lines, These couplings are also used for quick change of hydraulic tools in construction, railway maintenance and mining industries, the ease of cleaning makes them ideal for use in these types of hostile environments.

Parker FE/FF, Aeroquip/Eaton FD 89, Hansen QA 2900/FF, Foster FF, Faster FF, Cejn X62, Snap-Tite 74, Dixon HT, Safeway FF49 Series

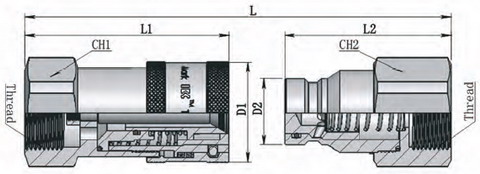

Part No. ISO DN Body Size Thread L L1 L2 D1 D2 CH1 CH2
FF06 6.3 1/4" 1/4" 96 59 48 27 16.2 24 24
FF10 10 3/8" 3/8" 120 73 63 30 19.8 27 27
FF10 10 3/8" 1/2" 126 76 67 30 19.8 27 27
FF12 12.5 1/2" 1/2" 145 83 79 38 24.5 32 32
FF12 12.5 1/2" 3/4" 154 87 84 38 24.5 34 34
FF16 16 5/8" 1/2" 168 93 93 42 27 38 38
FF16 16 5/8" 3/4" 176 97 97 42 27 38 38
FF19 19 3/4" 3/4" 179 101 100 48 30 42 42
FF19 19 3/4" 1" 179 101 100 48 30 42 42
FF25 25 1" 1" 186 100 108 55 36 50 50
FF25 25 1" 1-1/4" 192 103 111 55 36 55 55

Standard Thread: BSPP(G) & NPT Female Thread, other thread available for custom order

Standard Material: Steel, Stainless Steel

Specification

Body Size(inch) 1/4" 3/8" 1/2" 5/8" 3/4" 1"
Rated Pressure (PSI) 4500 4000 4000 3500 3500 3500
Flow (GPM) On 14.7 PSI 3 11 18 21 28 50
Temperature Rang -20°C to +80°C
Seal Standard NBR(Nitrile)

FPM(Viton®) seal is available and standard configuration for Stainless Steel QDs
