Parker/Pioneer 4000 Series Interchange Quick Release Couplings

PC Series - Parker/Pioneer 4000 Series Interchange Quick Release Couplings

Agricultural Double Shut-Off Quick Couplings (Ball Valve & Poppet Valve Available)
Industry Standard
PC Series couplings comply with ISO 5675 Standard (only 1/2" size).
Interchanges with
Parker/Pioneer 4000, Safeway S20, Faster NV/NS, Stucchi IR, Snap-Tite 60, Dixon AG, Tuthill H-55000 Series

Features

■ 1/2" body size meets dimensional requirements of ISO 5675 Standard.
■ Double shut-off design available with either a rugged ball valve or leak-free, high flow poppet valve.
■ Reliable and durable ball locking mechanism provides smooth operation time after time. Critical parts are induction hardened for durability.
■ One-way sleeve design allows implement break-away when the coupling is clamped or bulkhead mounted.

Applications

PC Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mail machinery, and other demanding hydraulic applications.

Parker 4000, Safeway S20, Faster NS, Tuthill H-55000

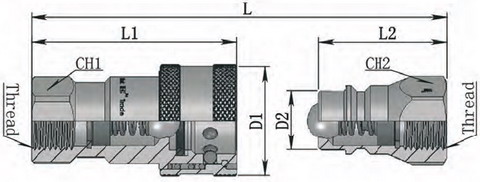

Part No. ISO DN Body Size Thread L L1 L2 D1 D2 CH1 CH2
PC06 6.3 1/4" 1/4" 65 50 33 27 14.2 22 19
PC10 10 3/8" 3/8" 75 59 38 33 19 24 22
PC12 12.5 1/2" 1/2" 91 68 46 39 20.5 27 27
PC20 20 3/4" 3/4" 106 82 60 47 26.8 35 35
PCF20 20 3/4" 3/4" 108 83 54 48 27.9 34 34
PC25 25 1" 1" 120 95 64 55 31.3 41 41

PC20 interchaneg with 3/4" body size of Parker 4000 series.
PCF20 interchange with 3/4" body size of Faster NV-NS series.

Standard Thread: BSPP, NPT, ORB Female Thread, other thread available for custom order

Standard Material: Steel

Ball Valve & Poppet Valve (P suffix) Available

Specification

Body Size(inch) 1/4" 3/8" 1/2" 3/4" 1"
Rated Pressure (PSI) 5000 4000 4000 3500 3000
Rated Flow(GPM) 3 6 12 28 50
Temperature Rang -20°C to +80°C
Seal Standard NBR(Nitrile)

FPM(Viton®) seal is available, Please indicate if you need
