ISO 7241-1 Series A Standard Hydraulic Quick Couplers

IA Series - ISO 7241-1 Series A Standard Hydraulic Quick Couplers

Double Shut-Off Quick Couplings
Industry Standard
IA Series couplings comply with ISO 7241-1 Series A Standard.
Interchange with
Parker 6600, Faster ANV, Aeroquip 5600, Hansen HA15000, Foster A, Cejn X95, Safeway S56

Features

■ Poppet valves available to prevent uncoupled leakage
■ Ball valves available for rugged dependability in heavy-duty hydraulic applications, within rated working pressure
■ Critical parts are induction hardened for durability
■ Dependable ball-locking mechanism holds the mating halves together
■ Socket and plug are precision machined from solid bar stock

Applications

IA Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mail machinery, and other demanding hydraulic applications.

Parker 6600, Faster ANV, Aeroquip 5600, Hansen HA15000, Foster A, Cejn X95, Safeway S56

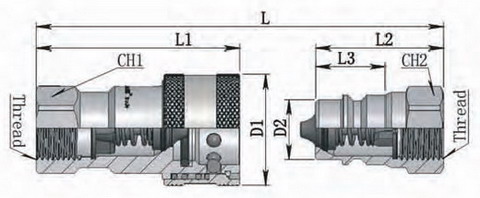

Part No. ISO DN Body Size Thread L L1 L2 D1 D2 CH1 CH2
IA06 6.3 1/4" 1/4" 70 49 35 26 11.8 19 19
IA10 10 3/8" 3/8" 85 60.5 42 30 17.3 22 22
IA12 12.5 1/2" 1/2" 96 70 48 38 20.5 27 27
IA20 20 3/4" 3/4" 114 84.5 56 45 29.1 34 34
IA25 25 1" 1" 131 99 66 52 34.3 41 41
IA32 31.5 1-1/4" 1-1/4" 150 117 75 70 45 50 50
IA40 40 1-1/2" 1-1/2" 167 133 84 82 55 60 60
IA50 50 2" 2" 216 169 108 99 65.1 75 75

Standard Thread: BSPP(G) & NPT Female Thread, other thread available for custom order

Material: Steel, Stainless Steel

Specification

Body Size(inch) 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Rated Pressure (PSI) 5000 4000 4000 3500 3000 3000 2500 2500
Rated Flow(GPM) 3 6 12 28 50 80 100 200
Temperature Rang -20°C to +80°C
Seal Standard NBR(Nitrile)

FPM(Viton®) seal is available and standard configuration for Stainless Steel QDs
