ISO 7241-1 Series B Standard Hydraulic Quick Disconnect Coupling

IB Series - ISO 7241-1 Series B Standard Hydraulic Quick Disconnect Coupling

Double Shut-Off Quick Couplings (Designed Double O-Ring Seal In Coupler)
Industry Standard
IB Series couplings comply with ISO 7241-1 Series B Standard.
Interchange with
Parker 60, Aeroquip FD 45, Nitto SP, Hansen HK, Foster HX-S, Faster HNV, Cejn X75, Safeway S10

Features

■ Poppet valves available to prevent uncoupled leakage
■ Ball valves available for rugged dependability in heavy-duty hydraulic applications, within rated working pressure
■ Critical parts are induction hardened for durability
■ Dependable ball-locking mechanism holds the mating halves together
■ Socket and plug are precision machined from solid bar stock

Applications

IB Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mail machinery, and other demanding hydraulic applications.

Parker 60, Aeroquip FD 45, Nitto 250, Hansen BX-H, Foster HX-S, Faster HNV, Cejn X75

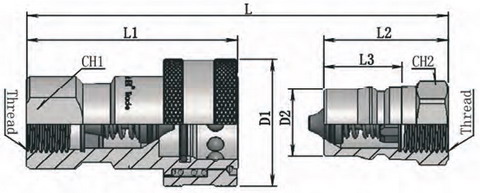

Part No. ISO DN Body Size Thread L L1 L2 L3 D1 D2 CH1 CH2
IB05 5 1/8" 1/8" 58.5 48 31 20.5 24 10.9 17 17
IB06 6.3 1/4" 1/4" 70 57 38 20 28 14.2 19 19
IB10 10 3/8" 3/8" 80 60 43 23 35 19.1 24 24
IB12 12.5 1/2" 1/2" 95 75 48.5 28.5 45 23.5 30 30
IB20 20 3/4" 3/4" 115 93 57 35 55 31.4 36 36
IB25 25 1" 1" 130 106 65.5 41.5 64 37.8 41 41
IB40* 40 1-1/2" 1-1/4", 1-1/2" 200 122 120 42 76 44.5 67 67
IB65* 65 2-1/2" 2", 2-1/2", 3" 220 140 140 60 100 63.2 95 95

* It is different feature when the body size larger than 1", poppet inside of nipple

ISO 7241-1 B series, body size 1-1/2 & 2-1/2

Standard Thread: BSPP(G) & NPT Female Thread, other thread available for custom order

Material: Brass, Steel, Stainless Steel

Brass ISO 7241-1 B series

IBB - Brass

Stainless Steel ISO 7241-1 B series

IBSS - Stainless Steel

Specification

Body Size (inch) 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1-1/2" 2-1/2"
Rated Pressure(PSI)
Brass 3000 2700 2300 2250 2000 1500 1300 1000
Steel 4500 4500 3700 3700 3500 3000 1800 1500
Stainless Steel 4500 4500 4000 4000 3500 3000 1800 1500
Rated Flow(GPM) 0.8 3 6 12 28 50 100 200
Temperature Range -20°Cto+80°C
Seal Standard NBR(Nitrile)

FPM(Viton®) seal is available and standard configuration for Stainless Steel QDs
